Planetary Roller Screw Actuator

Name: Planetary Roller Screw Actuator
Brand: Roller Screw Actuators
SKU: planetary-roller-screw-actuator
Availability: InStock
Rating: 4.9 (24 reviews)

Advanced kinematics architecture for high duty cycle, high speed, and high-force actuator applications.

Target Buyer:System Integrators and OEM Design Engineers needing extreme durability.

High-load planetary roller screw actuator assembly

Best Fit

High-duty servo axes that need high force density, long travel life, and repeatable force output.
Machine builders comparing planetary roller screws against ball screws, hydraulic cylinders, or linear motors.
Applications with high acceleration or frequent reversals where ball return systems become a concern.

Review Before Sizing

Equivalent load model across the full cycle instead of a single static thrust number.
Maximum screw speed, critical speed, heat generation, grease or oil lubrication, and cooling path.
Preload target, backlash requirement, axial stiffness, and acceptable running torque window.

Capability Highlights

Planetary roller arrangement with multiple load-sharing contact lines
Supports high duty cycle applications when thermal limits are reviewed
High rotational-speed potential without ball return limitations

Typical Applications

Injection molding
Metal forming presses
Aerospace test rigs

Engineering Focus

Synchronized planetary roller motion
Thermal management under continuous operation
Lubrication retention designs

Key Evaluation Matrix

Metric	Typical Range	Why It Matters
Maximum Speed	Up to 2,000 RPM (size dependent)	Enables faster cycle times in production environments.
Equivalent Dynamic Load	Calculated from force, speed, and time segments	Gives a more realistic life estimate than a single static thrust number.
Preload / Running Torque	Set by stiffness and backlash target	Balances rigidity against heat generation and servo sizing requirements.
Lubrication Method	Grease, oil, or project-specific circulation	High-duty planetary roller screws fail early when heat and lubricant retention are ignored.

RFQ Checklist

Detailed duty cycle profile (time vs. force)
Maximum velocity and acceleration requirements
Available mounting envelope
Lead, preload, backlash, stiffness, and lubrication expectations
Motor speed, gearbox ratio, brake, encoder, and control interface

Risk Controls

Thermal expansion during high duty cycles: Optional integrated liquid cooling jackets for temperature stabilization.
Excess preload increasing heat and motor load: Confirm backlash, stiffness, running torque, and thermal margin together before freezing preload.
Copied ball screw envelope does not fit roller screw support needs: Review bearing support, nut length, lubrication access, and assembly preload before using legacy dimensions.

Factory Validation Evidence

Lead, pitch, thread profile, hardness, roughness, and roller synchronization checks.
Assembly preload confirmation and friction torque recording by size and serial number.
End-of-line run-in, noise, temperature, and axial play checks when required by the RFQ.

Buying Notes

Use this path when life and duty cycle justify the added precision-manufacturing cost.
Ask for a sizing review before copying ball screw dimensions into a roller screw actuator envelope.
Include motor speed, gearbox ratio, brake, encoder, and drive limits if the actuator is supplied as an integrated package.

Product Gallery

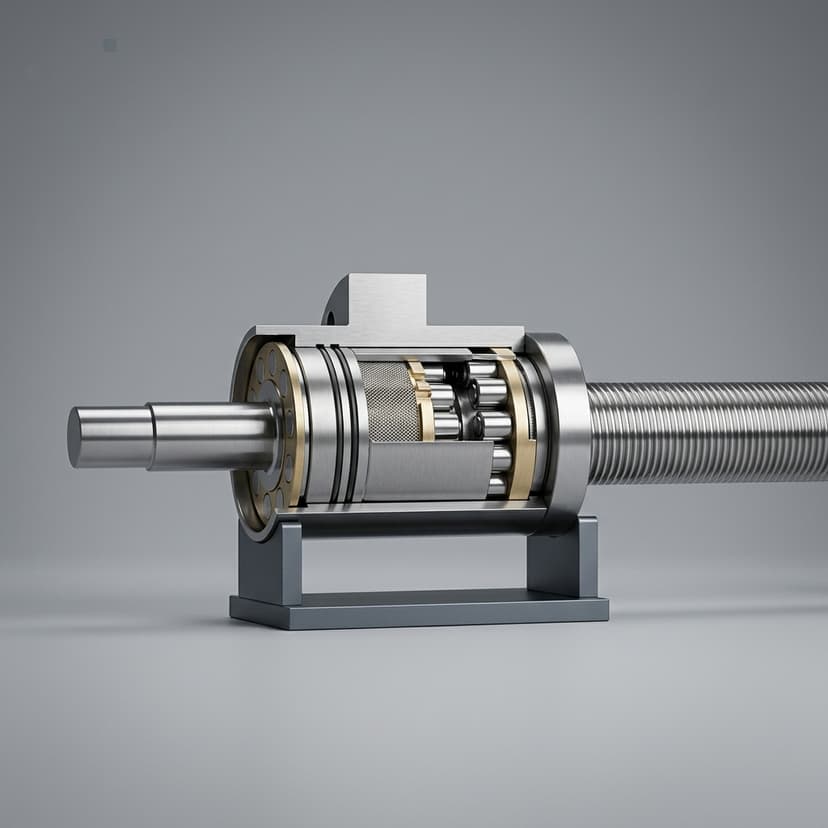

Planetary roller screw actuator with precision ground screw shaft

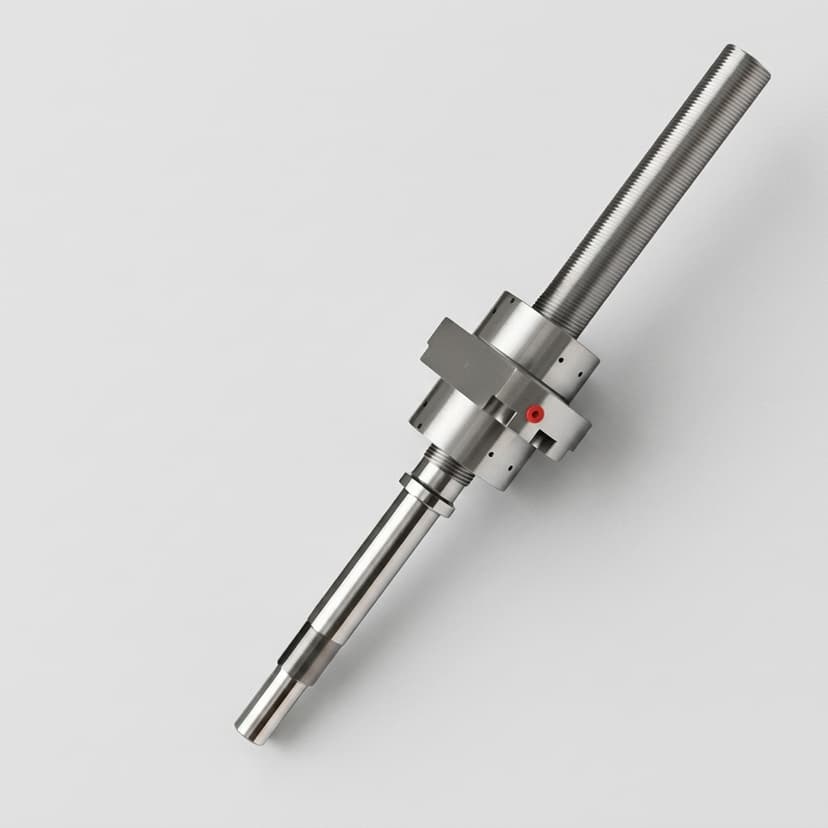

Planetary roller screw components for high-duty linear actuation

Planetary roller screw actuator detail for compact high-force axes

Buyer FAQ

Are planetary roller screws suitable for continuous operation?

Yes, they are often selected for high-duty applications, but the final duty rating still depends on load, speed, lubrication, heat rejection, motor sizing, and the validated motion profile.

When should I choose planetary instead of inverted roller screw architecture?

Choose planetary architecture when load rating, stiffness, life, and standard actuator packaging are the main drivers. Review inverted architecture when retracted length and moving-mass constraints dominate.

What factory checks matter most for planetary roller screws?

Lead accuracy, pitch error, thread profile, roller synchronization, hardness, roughness, backlash, axial play, and running torque should be aligned with the acceptance plan.
