Roller Screw Actuator Products

Factory-direct roller screw actuator families for high-force electric cylinders, hydraulic replacement, compact robotics mechanisms, and drawing-based OEM motion systems.

Use this page as a pre-RFQ navigator: pick the product family, capture the correct engineering inputs, and move directly to sample validation criteria that buyers can approve.

How to Select the Right Path

Define rated force, peak force, stroke, speed, acceleration, and duty cycle.
Confirm envelope, mounting, rod end, anti-rotation, brake, sensor, and load-cell requirements.
Select the screw architecture: planetary roller screw, inverted roller screw, integrated servo cylinder, or custom assembly.
Set life, backlash, repeatability, axial play, and inspection acceptance criteria before quotation freeze.
Share drawing, STEP file, target quantity stage, delivery country, and lead-time goal with the initial RFQ.

Roller Screw Actuator

Direct-drive linear motion mechanisms designed for high force density and rigidity in heavy-duty industrial applications.

Mechanical Engineers and Sourcing Managers looking for reliable heavy-duty actuation.

High-force linear axes where ball screw life, stiffness, or shock capacity is the limiting factor.
OEM machines that need a compact electric actuator rather than a separate screw, bearing block, and thrust tube package.

Review first: Peak force and impact load, not only rated working load.

View details

Planetary Roller Screw Actuator

Advanced kinematics architecture for high duty cycle, high speed, and high-force actuator applications.

System Integrators and OEM Design Engineers needing extreme durability.

High-duty servo axes that need high force density, long travel life, and repeatable force output.
Machine builders comparing planetary roller screws against ball screws, hydraulic cylinders, or linear motors.

Review first: Equivalent load model across the full cycle instead of a single static thrust number.

View details

Servo Electric Cylinder

Integrated electromechanical assemblies combining a precision roller screw with a servo motor interface for programmable motion.

Automation Engineers seeking to replace hydraulics with programmable control.

Factory automation axes that need programmable force, position, and velocity without hydraulic fluid systems.
Servo presses, joining stations, welding guns, clamping, dispensing, and lift axes with data capture requirements.

Review first: Force-displacement curve, hold time, cycle rate, dwell heat, and required process data outputs.

View details

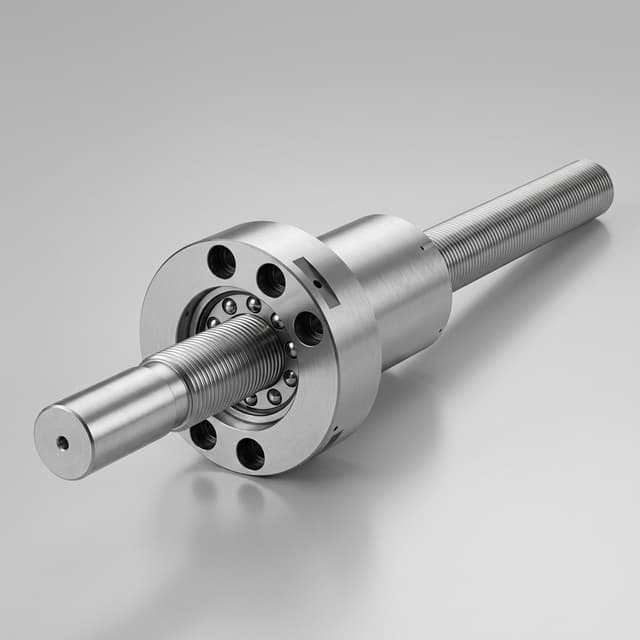

High-Force Electromechanical Actuator

Heavy-duty actuators engineered for high thrust, offering a clean electromechanical option where hydraulic replacement is feasible.

Plant Managers and Heavy Industry Engineers looking to electrify equipment.

Hydraulic replacement projects where cleanliness, controllability, maintenance reduction, and data visibility are priorities.
Heavy clamping, lifting, valve, press, and test equipment axes with high thrust and shock-load requirements.

Review first: Continuous force, peak force, stall condition, shock factor, safety factor, and emergency stop load path.

View details

Compact Roller Screw Actuator

Space-saving linear motion solutions designed for robotics and tight-envelope applications where force density must be reviewed early.

Robotics Engineers and Medical Device Designers working with strict space constraints.

Robotics, humanoid joints, mobile automation, medical devices, and fixtures with strict length or mass limits.
Projects that need high force in a short retracted envelope using inverted or tightly integrated architectures.

Review first: Maximum envelope, retracted length, moving mass, cable route, connector position, and thermal boundary.

View details

Custom Roller Screw Actuator (OEM)

Tailor-made actuator manufacturing from print to production, targeting buyer-specific geometry, environment, and performance requirements.

R&D Engineers and Procurement Managers needing non-standard solutions.

Drawing-based OEM actuator programs where standard catalog dimensions do not fit the machine.
Replacement projects requiring reverse engineering, custom stroke, special mounting, or proprietary interfaces.

Review first: Interface dimensions, forbidden zones, load path, side-load assumptions, and revision-control ownership.

View details

Planetary Roller Screw Component Assembly

Actuator Components & Subassemblies

Precision roller screw sets, machined shafts, nuts, bearings, and housings for OEM integration.

OEMs and engineering teams designing proprietary linear motion mechanisms who need high-precision core components.

OEM teams building their own actuator body but needing precision roller screws, nuts, rollers, or machined interfaces.
Machine builders requiring custom screw ends, bearing journals, housings, thrust tubes, or anti-rotation parts.

Review first: Lead, pitch, thread form, material, heat treatment, hardness, surface finish, and precision grade.

View details

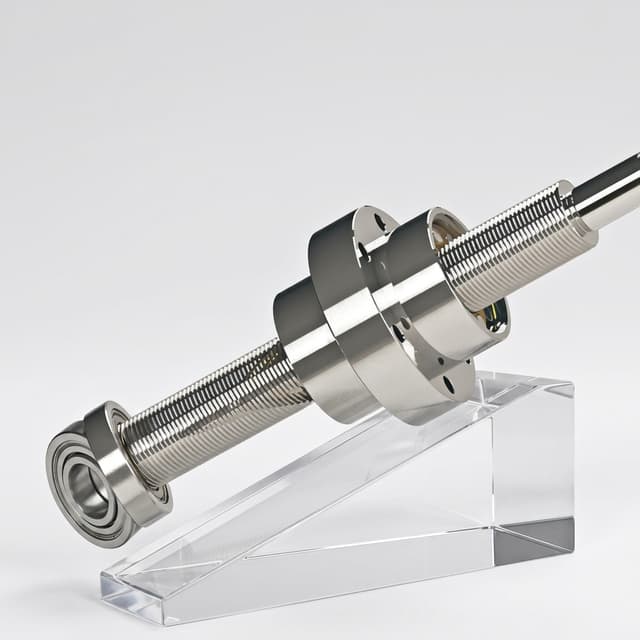

Heavy Duty Electric Linear Actuator

Engineered for extreme industrial environments requiring massive thrust, shock load resistance, and continuous operation.

Industrial equipment OEMs and Plant Managers upgrading from hydraulics or failing ball screws.

Metal forming presses
Steel mill automation

Review first: Shock load mitigation

View details

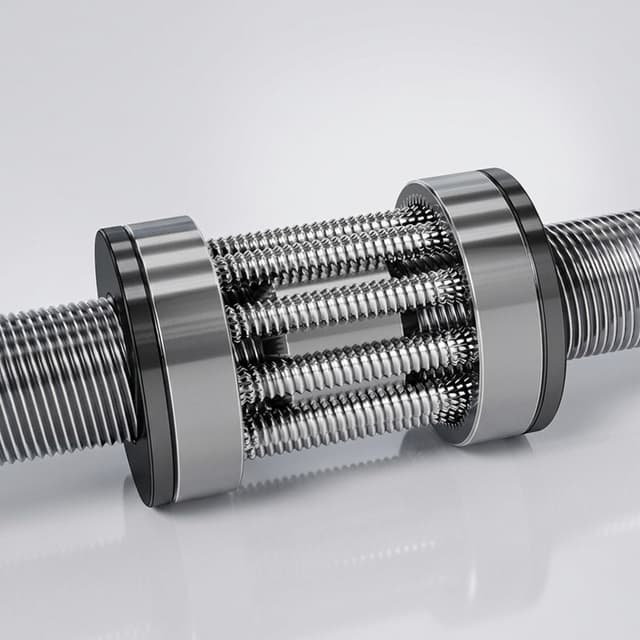

High duty cycle planetary roller screw actuator

High Duty Cycle Actuator

Designed for continuous, high-speed cycling without overheating, ideal for injection molding and rapid pressing.

Automation Engineers and System Integrators designing high-throughput production lines.

Injection molding machines
Rapid assembly presses

Review first: Thermal heat dissipation modeling

View details

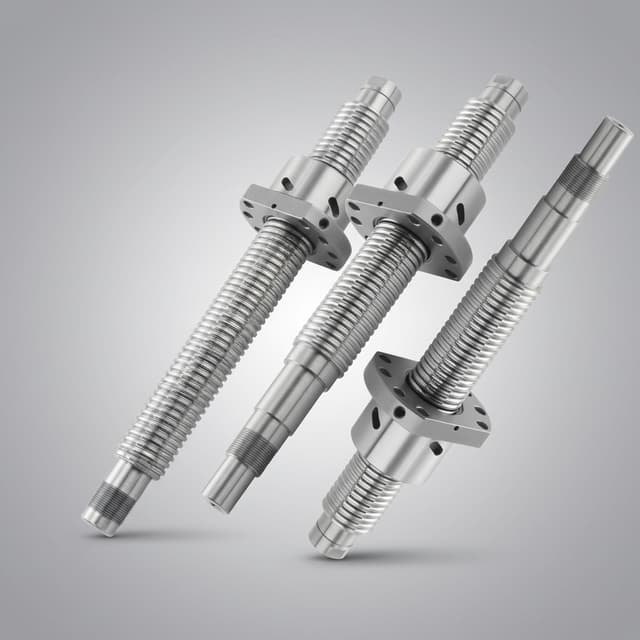

Low backlash high precision roller screw actuator

Low Backlash & High Precision Actuator

Ultra-precise linear motion for testing, dispensing, and micro-positioning, featuring preloaded roller screws for zero-backlash reversal.

Test Engineers and Precision Machine Builders requiring exact bi-directional repeatability.

Aerospace test stands
Fluid dispensing systems

Review first: Precision thread grinding

View details

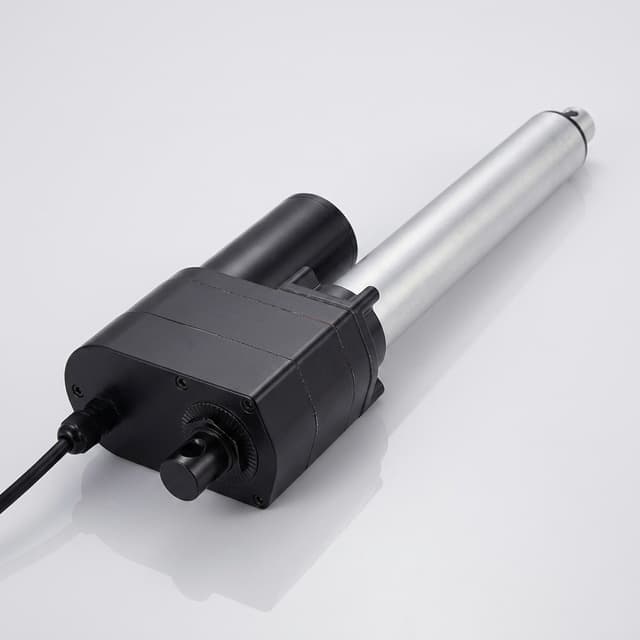

Integrated Servo Actuator

A turnkey electromechanical motion package featuring a planetary roller screw actuator, matched servo motor, brake, and absolute encoder.

System Integrators and Automation Engineers seeking a single-supplier, plug-and-play actuator solution.

Automated assembly lines
Precision robotics

Review first: Motor torque to screw lead matching

View details

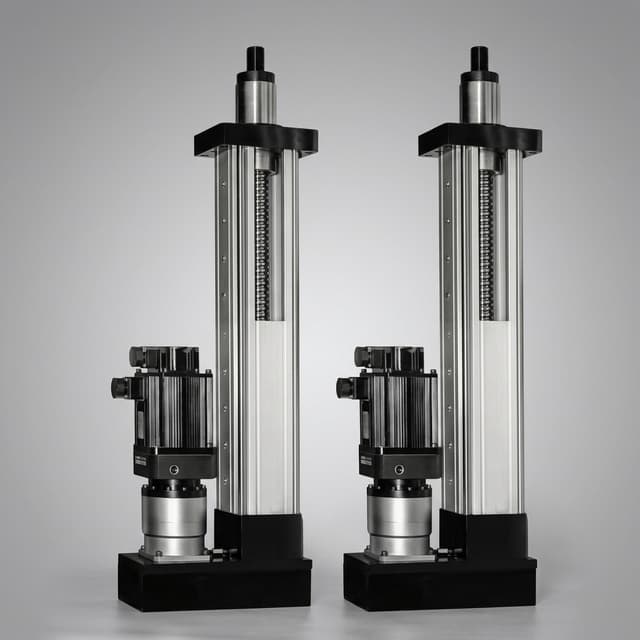

Roller screw actuator with inline load cell for servo presses

Actuator with Load Cell

Precision force-control electromechanical cylinders equipped with inline or flange-mounted load cells for closed-loop pressing and joining.

Manufacturing Engineers and Quality Managers who require precise force-displacement curves for every cycle.

Servo press machines
Automotive part joining and riveting

Review first: Load cell calibration and accuracy class

View details

Cross-Family Evaluation Snapshot

Product Family	Primary Buyer Focus	Key Metric	Why It Matters
Roller Screw Actuator	Mechanical Engineers and Sourcing Managers looking for reliable heavy-duty actuation.	Dynamic Load Rating: Up to 1,500 kN	Determines the L10 operational life under expected payloads. Validation: Thread grinding and lead accuracy inspection for the screw shaft and nut set.
Planetary Roller Screw Actuator	System Integrators and OEM Design Engineers needing extreme durability.	Maximum Speed: Up to 2,000 RPM (size dependent)	Enables faster cycle times in production environments. Validation: Lead, pitch, thread profile, hardness, roughness, and roller synchronization checks.
Servo Electric Cylinder	Automation Engineers seeking to replace hydraulics with programmable control.	Positioning Repeatability: ±0.01 mm to ±0.02 mm	Essential for precise press-fitting or dispensing applications. Validation: Motor mounting concentricity, bearing fit, thrust tube alignment, and anti-rotation smoothness checks.
High-Force Electromechanical Actuator	Plant Managers and Heavy Industry Engineers looking to electrify equipment.	Thrust Capacity: Project-sized from tens to hundreds of kN and above	Directly dictates the ability to replace existing hydraulic cylinders. Validation: Heavy-duty housing machining, bearing journal inspection, thrust bearing preload, and weldment or coating checks.
Compact Roller Screw Actuator	Robotics Engineers and Medical Device Designers working with strict space constraints.	Power Density: High force per kg when packaging is optimized	Critical for mobile robotics to extend battery life and payload capacity. Validation: Envelope stack-up review, thin-wall housing machining checks, and bearing alignment inspection.
Custom Roller Screw Actuator (OEM)	R&D Engineers and Procurement Managers needing non-standard solutions.	Customization Scope: From modified standards to clean-sheet designs	Allows the actuator package to match proprietary equipment architecture with fewer buyer-side interface changes. Validation: DFM review, tolerance stack-up check, and machining route confirmation before prototype release.
Actuator Components & Subassemblies	OEMs and engineering teams designing proprietary linear motion mechanisms who need high-precision core components.	Component Types: Planetary roller screws, inverted roller screws, thrust tubes, bearing blocks.	Provides the building blocks for ultra-high force density motion systems. Validation: Thread geometry, lead accuracy, hardness, roughness, bearing journal, and concentricity checks.
Heavy Duty Electric Linear Actuator	Industrial equipment OEMs and Plant Managers upgrading from hydraulics or failing ball screws.	Dynamic Load Capacity: 50 kN to 2,000+ kN	Determines survivability and L10 life under heavy shock loads. Validation: Integrated heavy-duty external guide rods or oversized internal bushings.
High Duty Cycle Actuator	Automation Engineers and System Integrators designing high-throughput production lines.	Continuous RMS Force: Application specific, thermally modeled	Crucial to prevent thermal runaway during 24/7 continuous operation. Validation: Thermal modeling prior to selection and optional liquid-cooled housing integration.
Low Backlash & High Precision Actuator	Test Engineers and Precision Machine Builders requiring exact bi-directional repeatability.	Backlash: < 0.01 mm to Zero	Critical for precision dispensing and accurate force-curve testing upon motion reversal. Validation: Use of high-hardness planetary rollers and calibrated split-nut preloading during assembly.
Integrated Servo Actuator	System Integrators and Automation Engineers seeking a single-supplier, plug-and-play actuator solution.	System Efficiency: Up to 80% combined	Reduces energy costs compared to hydraulic/pneumatic equivalents. Validation: Factory-aligned and torqued couplings with runout verification before shipment.
Actuator with Load Cell	Manufacturing Engineers and Quality Managers who require precise force-displacement curves for every cycle.	Force Accuracy: ±0.1% to ±0.5% Full Scale	Ensures parts are pressed to exact specifications without damage. Validation: Precision guiding mechanisms within the actuator isolate the load cell from bending moments.

Featured Products

Representative roller screw actuator, servo electric cylinder, and high-force electromechanical actuator builds for OEM discussion.

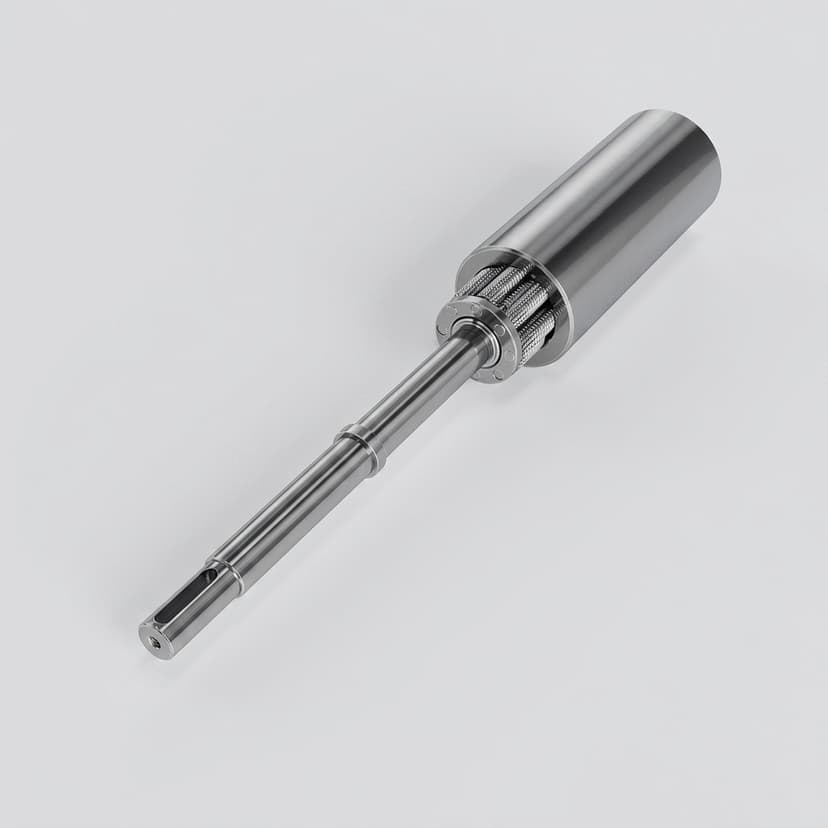

Featured high-load planetary roller screw actuator

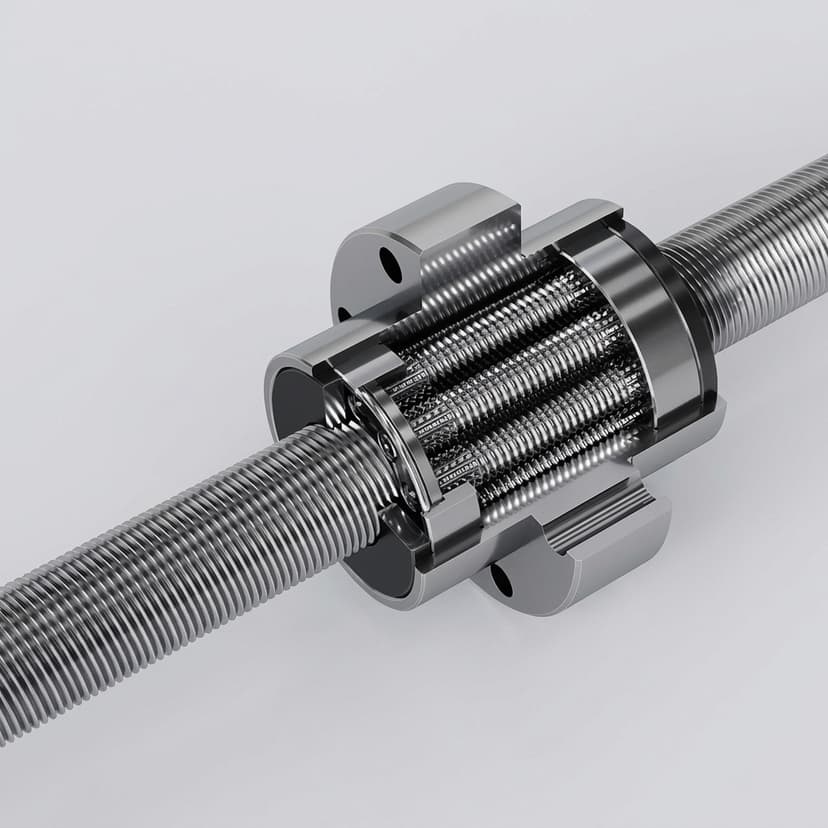

Featured compact roller screw actuator for tight machine envelopes

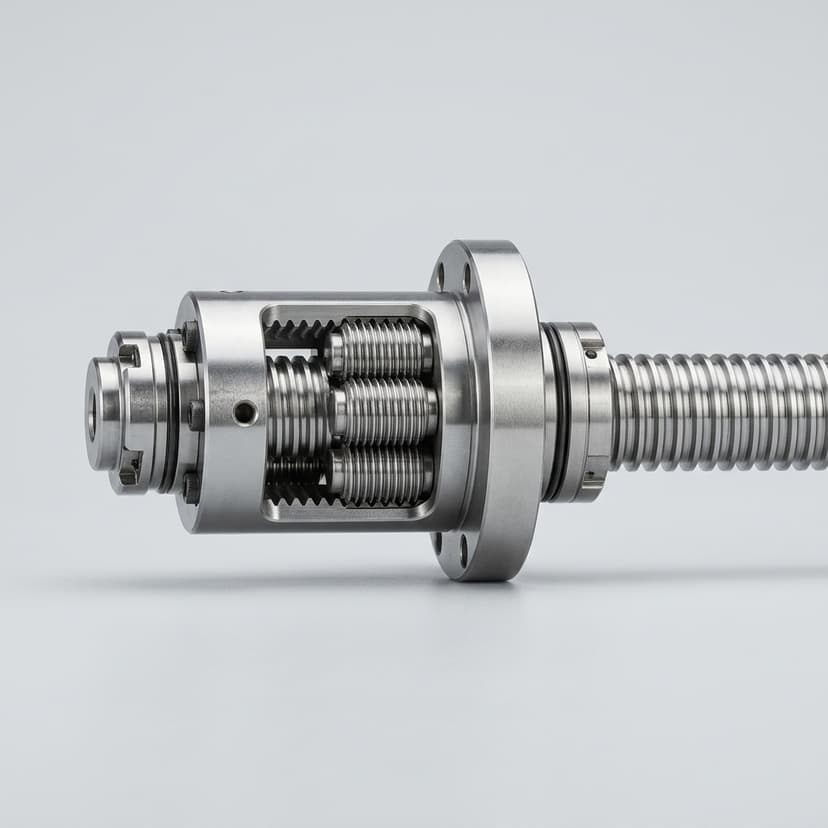

Featured high-force roller screw actuator core

Featured custom roller screw actuator component package
