Servo Press & Joining

Control pressing, riveting, welding, and joining operations with programmable force and position profiles.

Target Buyer:Manufacturing engineers focused on measurable press quality and traceable assembly lines.

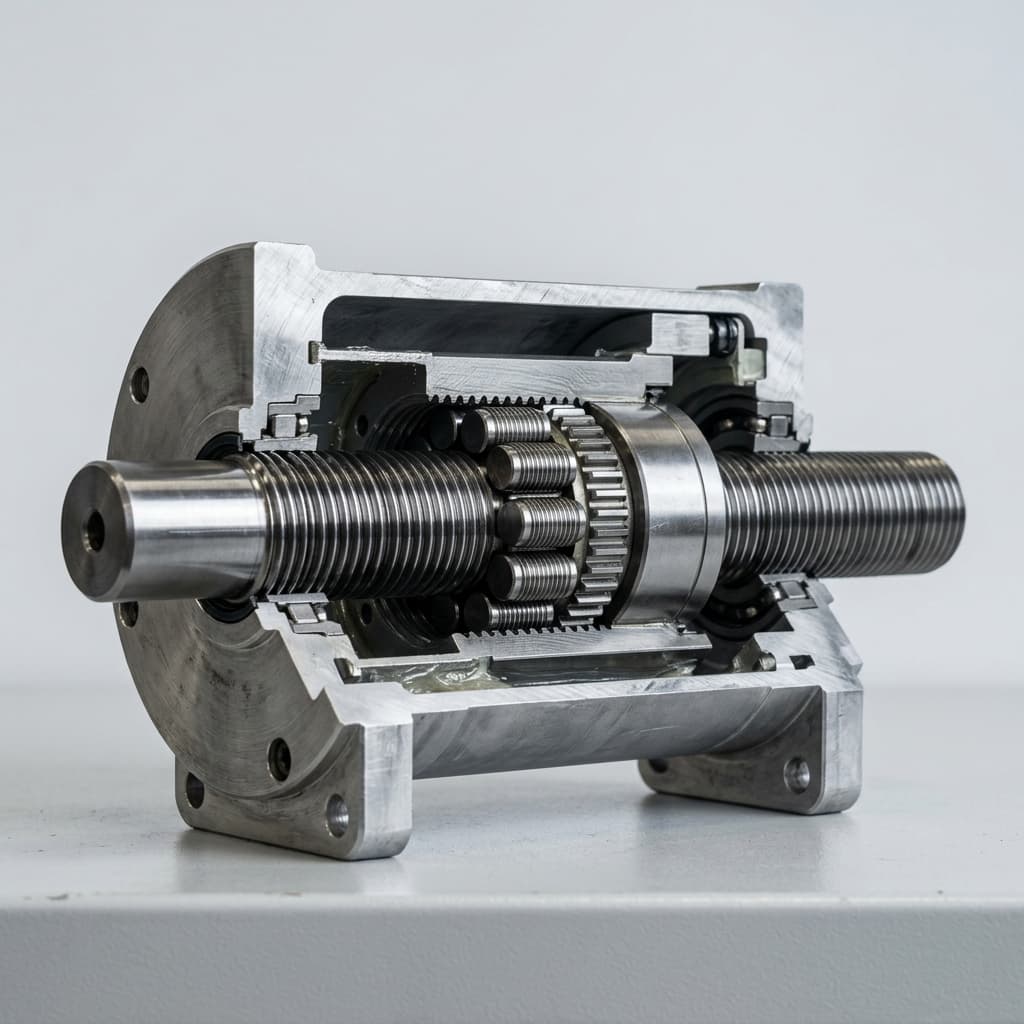

Roller screw actuator core for servo press force control

Best Fit

Press-fit, riveting, crimping, clinching, welding-gun, and joining stations that need programmable force and position.
Production lines requiring force-displacement curves, reject windows, and traceable assembly records.
Applications where hydraulic or pneumatic presses struggle with repeatability or data capture.

Review Before Sizing

Target force curve, press speed, dwell time, return speed, cycle rate, and part-stack tolerance.
Force measurement method, load-cell location, calibration plan, PLC interface, and data retention need.
Frame stiffness, tool alignment, side-load protection, and guarding or safety brake requirements.

Solution Highlights

Real-time force and position monitoring
Configurable press profiles for complex assemblies
Process data capture for every pressed part when connected to the buyer control system

Common Use Cases

Automotive bearing press
Electronics assembly
Riveting and crimping

Implementation Focus

High stiffness construction
Integration of precision load cells
Low backlash mechanisms

Application Evaluation Matrix

Evaluation Metric	Typical Range	Buyer Relevance
Force Control Accuracy	±1% of full scale	Prevents damage to sensitive components during assembly.
Position Repeatability	Application target such as ±0.01 mm	Supports consistent press depth, crimp height, and joining quality.
Cycle Rate / Heat Rise	Defined by approach, press, hold, return, and dwell segments	Servo press actuators are often limited by RMS load and thermal behavior, not only peak force.
Traceability Data	Force-displacement curve, timestamp, result window, part ID	Lets production teams prove each press event against a measurable acceptance window.

RFQ Preparation Checklist

Target press force and hold time
Required position accuracy (e.g., ±0.01 mm)
Data acquisition and PLC communication needs
Force-displacement curve, reject windows, takt time, and calibration plan
Load-cell location, tooling alignment, frame stiffness, and service access

Risk and Mitigation

Inconsistent press depths: Closed-loop feedback utilizing both motor encoder and external load cells.
Force signal does not represent tooling force: Place and calibrate the load cell in the actual load path instead of relying only on motor current.
Press frame compliance creates false actuator errors: Review frame stiffness, tooling parallelism, and guide alignment with the actuator selection.

Factory Validation Evidence

Low-backlash actuator assembly, load-cell fit, encoder/brake checks, and repeatability verification.
Cycle testing under representative force and speed when press quality is the acceptance driver.
Inspection records for thrust components and mounting interfaces that affect press alignment.

Buyer Decision Notes

Define pass/fail process windows before actuator sizing so force capacity is not treated as the only requirement.
State whether the buyer will supply the press controller or needs only the actuator and drive-ready package.
For multi-station lines, include takt time, uptime target, spare strategy, and service access constraints.

Recommended Products

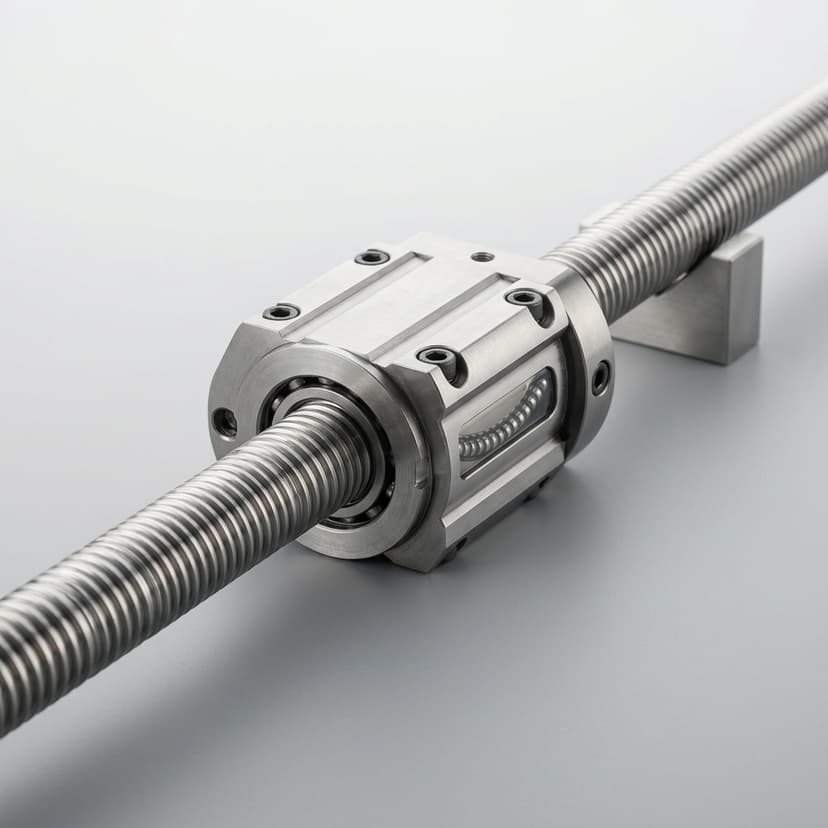

Servo press roller screw assembly for repeatable joining operations

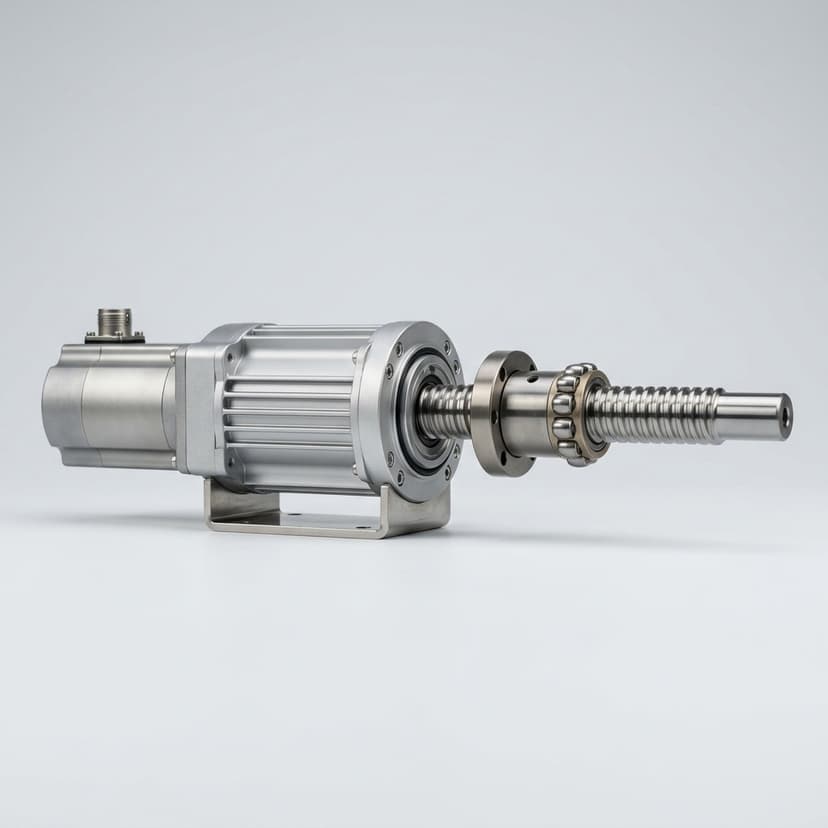

Precision roller screw components for press and riveting actuators

Buyer FAQ

Do you provide the press control software?

We provide the mechanical actuator and drive; you can integrate it with any standard PLC or specialized press controller.

Should a servo press use motor current or a load cell for force control?

Motor current may be enough for rough monitoring, but precision joining, reject windows, and audit records usually need an external load cell with calibration.

What press data should be defined before selecting the actuator?

Define force-displacement curve, peak force, dwell time, cycle rate, part-stack tolerance, frame stiffness, controller interface, and pass/fail data requirements.
